Rockwool sandwich panel and its manufacturing process is one the most advanced inventions, which in the factory automation equipment, rock wool and steel into a whole, thus changing the way of the rock wool plate before the compound required site , under the premise that meet the requirements of the building thermal insulation, sound insulation, fire protection, to achieve a high quality, efficient, reliable, safe target.
The up & down surface of this rockwool panel is Galvanized & Pre-painted steel sheets, core material is 5 components rockwool glue, it is formed by heating, foaming & laminating. Rockwool is the best material for temperature keeping and sound insulation. It is widely used as the wall or roof for cold storage, industrial workshop, public building etc.
In order to meet customers' requirements,Australian rock wool sandwich panels is our newly developed sandwich panels,which is combined by rock wool as core material and two steel sheets on up and down side.Compare to other kind of sandwich panels,the most outstanding features of rock wool insulated panels is fireproof level,which is A1 level.
What's rock wool sandwich panels?

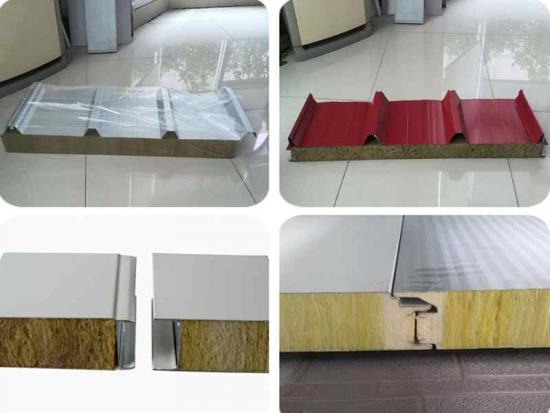

Rock wool sandwich panels is one kind of sandwich panels,which is combined by rock wool as core material and two steel sheets on up and down side.Compare to other kind of sandwich panels,the most outstanding features of rock wool insulated panels is fireproof level,which is A1 level.In order to meet customers' requirements,we have different kinds of joint ways for rock wool sandwich panels.

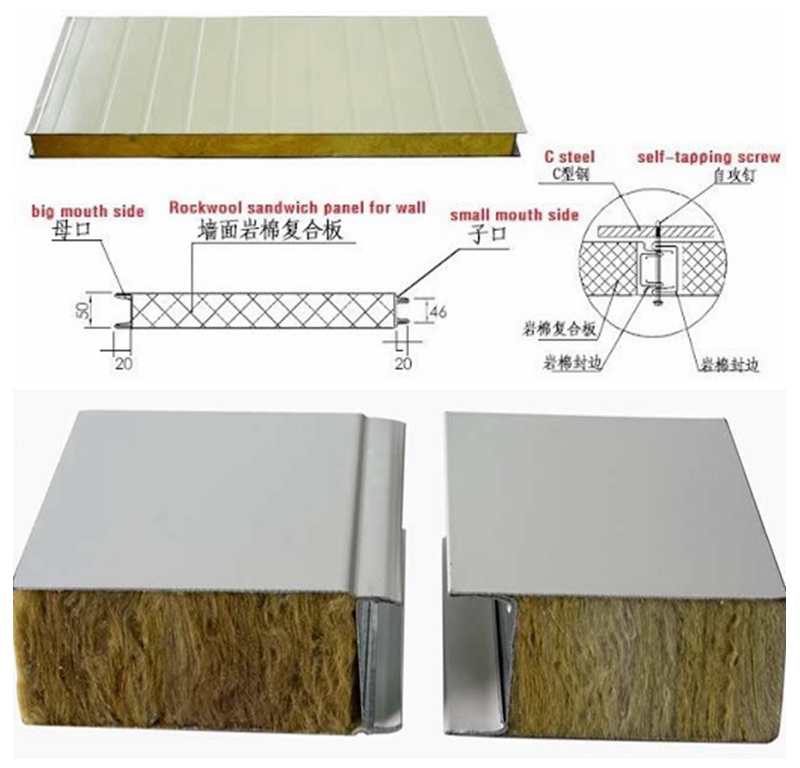

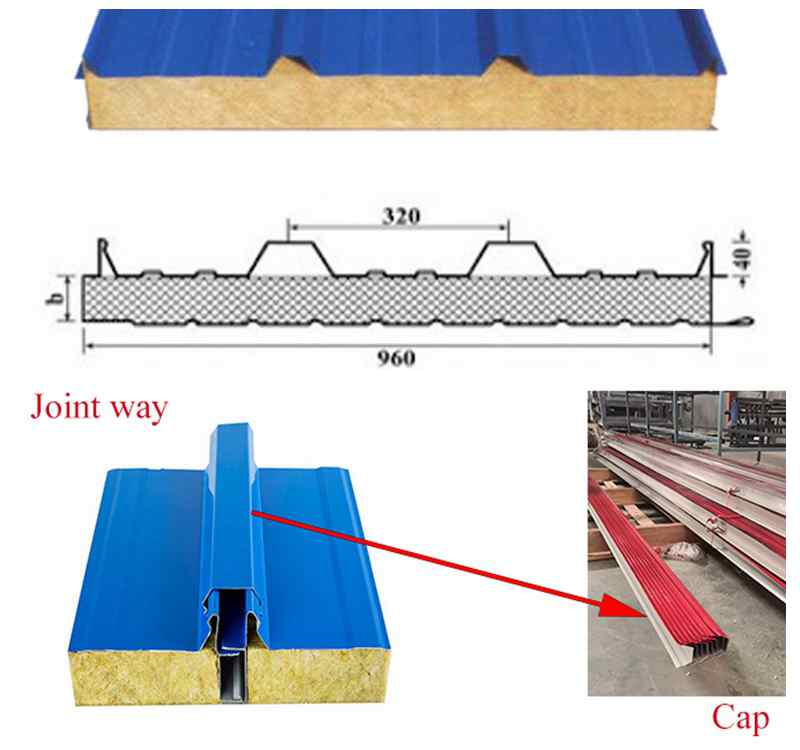

Lip type joint way for roof and wall sandwih panels:
Size Details as below
Cover wide:950mm/1150mm for wall, 950mm for roof
Length: Customized but less than 11.85meter usually.
Max 5.8m for 20GP container; Max 11.8m for 40GP/HQ container
Up color steel board thickness: 0.4mm to 0.7mm
Low color steel board thickness: 0.4mm to 0.7mm
Total thickness: 50mm,75mm,100mm,120mm, 150mm,
Coated materials: Zinc or aluminum alloy, 90-120G/M2
Fillings: rock wool
Steel Grade: Q235
Temperature Endurance: 800ºC
Water Absorption:≤2%
Steel color: white, Blue or RAL color
Our regular color is White grey,sliver grey,white silver grey,iron grey,dark grey,sea blue.
Applications
The sandwich panels can be used in large industrial plants,warehouses,supermarkets, hospitals, stadiums, cold storage, activities room, buildings plus layer, clean workshop and heat insulation fire place. Commercial housings in the cities, such as exhibition halls, shopping centers, offices and other housings for exhibition and sports.The temporary facilities in the construction site, such as office, warehouse.
Service&Support:
We are one combination of industry and trade company, and very professional with steel structure products in China. Because of good quality and service, competitive price, our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.
1)Professional sales team,One-to-one service;
2)Combination of industry and trade company,to ensure the service and price;
3)Experienced engineer team to offer professional technology service;
4)Intimate after-sales service.
Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
